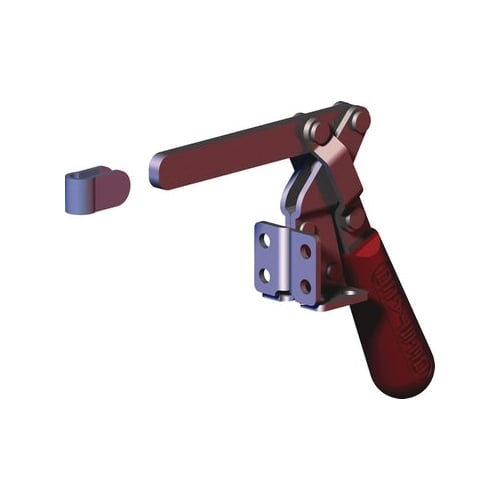

DESTACO 317-S Standard Vertical Hold-Down Toggle Locking Clamp, Steel, 375 lb, 2.68 in


Description

DESTACO Toggle Locking Clamp, Standard Vertical Hold-Down, Series: 317 Series, 375 lb Holding, 2.68 in Height Under Arm, 5.28 in Overall Height, Straight Handle, Solid Bar, 185 deg Bar Opening, Flanged Base, 0.63 x 1 in Mounting Centers, Steel, Electro Plated Zinc

Specifications

Bar Opening 185 deg
Bar Type Solid
Base Type Flanged
Finish Electro Plated Zinc
Handle Type Straight
Height Under Arm 2.68 in
Holding Capacity 375 lb
Material Steel
Mounting Centers 0.63 x 1 in
Overall Height 5.28 in
Series 317 Series
Type Standard Vertical Hold-Down

Includes: 207105 Bolt Retainer

Country of Origin: United States

Application:
Woodworking, Checking Fixtures, Light Machining, Assembly and Test

Features

  • Dual mounting flexibility
  • Large bar opening angle
