Enerpac® ZU4308RB Classic Universal Z-Class Electric Hydraulic Pump, 1.7 hp, 2 gal Reservoir, 60 cu-in/min Flow Rate, 10000 psi Pressure


Description

Enerpac® Electric Hydraulic Pump, Universal Z-Class, Series: Classic, 2 gal Reservoir, 1.7 hp, 60 cu-in/min, 10000 psi, 115 V, 50/60 Hz, 25 in Overall Length, 10-1/2 in Overall Width, 16.7 in Overall Height

Specifications

Flow Rate 60 cu-in/min
Frequency Rating 50/60 Hz
Horsepower 1.7 hp
Overall Height 16.7 in
Overall Length 25 in
Overall Width 10-1/2 in
Pressure Rating 10000 psi
Reservoir Capacity 2 gal
Series Classic ZU Series
Type Universal Z-Class
Voltage Rating 115 V

Warranty: Limited

Country of Origin: United States

Standards and Approvals: cTUVus Certified

Features

  • Patented Z-Class pump technology provides high bypass pressures for increased productivity, important in applications using long hose runs and high pressure drop circuits, like heavy lifting or certain double acting tools

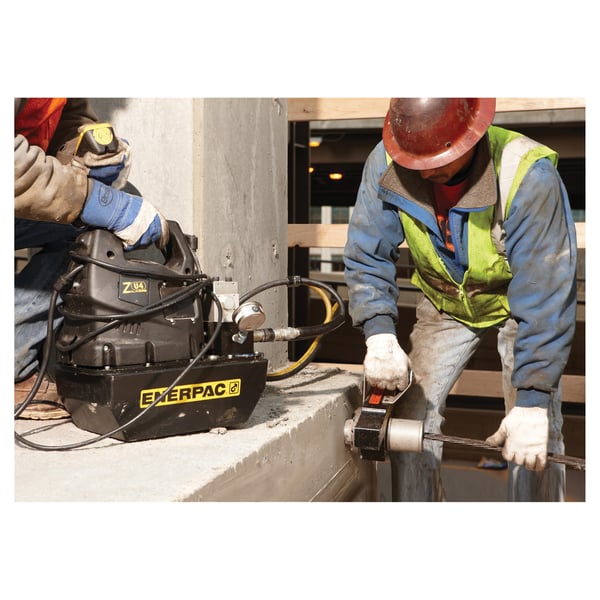

  • Enerpac® ZU4 hydraulic pumps are built to power small to large sized cylinders or hydraulic tools or wherever high speed, intermittent duty, remote hydraulic power is needed
  • Features Z-Class high efficiency pump design, higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
  • Powerful 1.7 hp universal electric motor provides high power to weight ratio and excellent low voltage operating characteristics
  • High strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
  • Low voltage pendant provides additional safety for the operator
  • The classic has traditional electromechanical components (transformers, relays and switches) in place of solid state electronics
  • The classic delivers durable, safe and efficient hydraulic power
