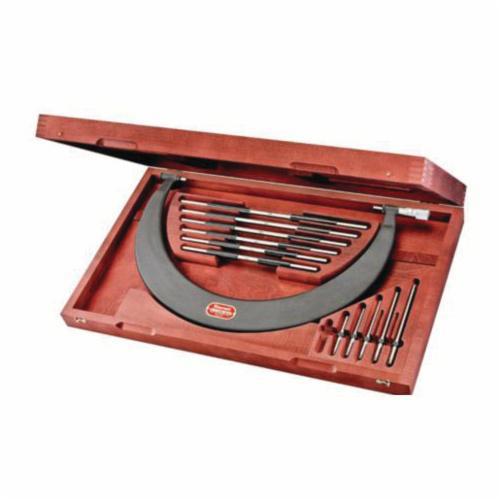

Starrett® 724MLZ-450 Interchangeable Anvil Plain Tubular Bow Outside Micrometer, 300 to 450 mm, Graduations: 0.01 mm, Steel, Satin Chrome
Starrett® 724MLZ-450 Interchangeable Anvil Plain Tubular Bow Outside Micrometer, 300 to 450 mm, Graduations: 0.01 mm, Steel, Satin Chrome
SKU: LHQ420
Manufacturer Part Number: 724MLZ-450
UPC: 049659643183
Brand: Starrett®
Description
Specifications
| Accuracy | +/-0.0003 in |
| Anvil Type | Flat |
| Finish | Satin Chrome |
| Graduations | 0.01 mm |
| Material | Steel |
| Measuring Range | 300 to 450 mm |
| Resolution | 0.01 mm |
| Series | 724M |
| Spindle Diameter | 0.3 in |
| Spindle Type | Flat |
| Type | Interchangeable Anvil Plain Tubular Bow |
Includes: 18 in Frame Blank, Lock Nut Kit, 0.475-60 Nut, 0.475 inx0.65 inx0.006 in Spring Washer, Stem, Metric Spindle, Barrel Spring, 0.157-40 SLOTx0.377 in Long Screw, (2) 2 Slotted P.H.x0.188 Long Screw, Small Plate Blank, Outside Metric Shell, Adjustable Metric Shell, PT16845 0.5-52 Nut, (2) NO 724 Wrench, NO 232 1/2 in Wrench, 1475 - 1500 mm Anvil Assembly, (4) 1475-1500 mm Anvil, (12) 0.375-40 Nut, 1450 - 1475 mm Anvil Assembly, 1450 - 1475 mm Anvil, 1425 - 1450 mm Anvil Assembly, 1425 - 1450 mm Anvil, 1400 - 1425 mm Anvil Assembly, 1375 - 1400 mm Anvil Assembly, 1350 - 1375 mm Anvil Assembly, 300 mm Standard With Insulator, 325 mm Standard With Insulator, 350 mm Standard With Insulator, 375 mm Standard With Insulator, 400 mm Standard With Insulator, 425 mm Standard With Insulator and Wood Case
Country of Origin: United States
Standards and Approvals: PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Features
- Starrett satin chrome finish, no-glare and resists rust
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Large thimble diameter with distinct figures
- Balanced frame and thimble design ensure easy handling and better readability
- Ring-type knurled lock nut for quick and sure locking
- Hollow tubular frame design combining lightest possible weight with rigidity
- Extremely hard and stable one-piece spindle
- Interchangeable anvils for diversified gaging
- Standards with insulated grips
- Micro-lapped measuring faces
- Quick and easy sleeve adjustment
- These micrometers are made for better precision measurement of large outside dimensions, they provide perfect balance, sensitive feel, ease of handling and less measuring effort due to their advanced tubular design
