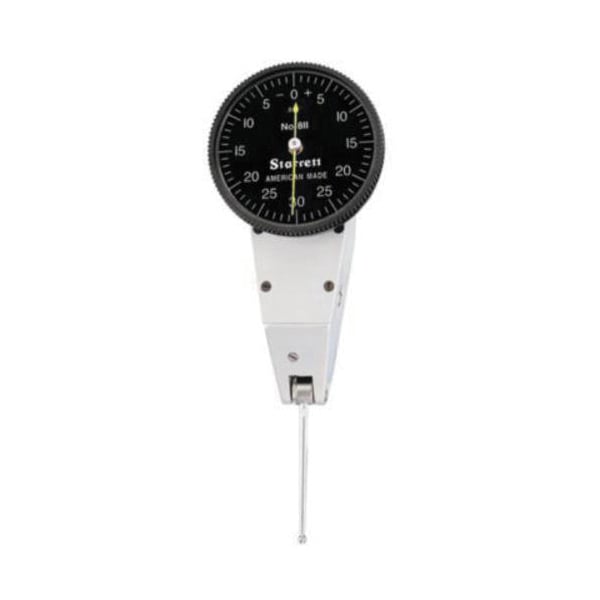

Starrett® B811-1CZ Dial Test Indicator With Swivel Head, 0.06 in Measuring, 0 to 30 to 0 Dial Reading, Graduations 0.001 in, 1-3/8 in Dial, 1-5/16 in L Tip


Description

Starrett® Dial Test Indicator, Series: 811 Series, 0.06 in Measuring, 0 to 30 to 0 Dial Reading, Graduations: 0.001 in, 1-3/8 in Dial, Black Dial, 1-5/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin

Specifications

Ball Diameter 0.078 in
Dial Color Black
Dial Reading 0 to 30 to 0
Dial Size 1-3/8 in
Finish Satin
Graduations 0.001 in
Material Steel
Measuring Range 0.06 in
Series 811 Series
Tip Size 1-5/16 in L

Includes: Dovetail Body Clamp, Tool Post Holder, Swivel Post Snug With Dovetail Indicator Clamp, Snug and Rod Unit

Country of Origin: United States

Standards and Approvals: PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • Contact point reverses automatically, always maintaining clockwise hand rotation
  • Contacts are frictionally adjustable and replaceable
  • Contacts also available individually in steel, carbide and different sizes
  • Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 deg
  • Inch reading indicators are available with white, red, or black dials - metric indicators with yellow dials
  • Smooth, jeweled movement
  • Two positioning mounts work with dovetail test indicator accessories
  • 100 G measuring force
  • Large dial diameter for increased readability
