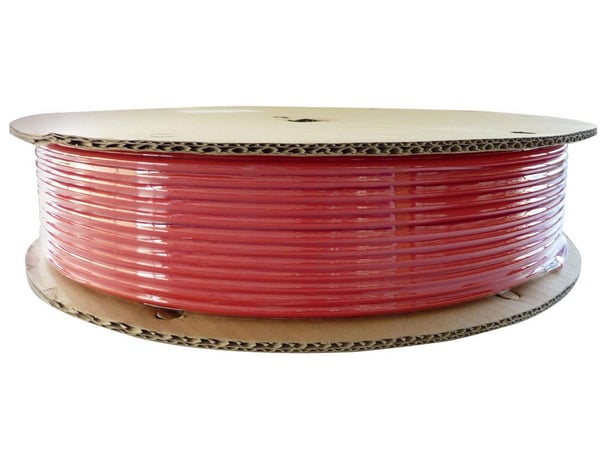

TOPRING 33.320.05 S33 Silicone-Free Tubing, 0.180 in Dia Inside x 1/4 in Dia Outside x 330 ft L, Nylon 12, Import


Description

TOPRING, 33.320.05, Tubing, Silicone-Free, Series: S33, 0.180 in ID, 1/4 in OD, 330 ft Length, 247 psi Working, -40 to 70 deg C, Nylon 12, Red, Import

Specifications

Color Red
Domestic/Import Import
Inside Diameter 0.180 in
Length 330 ft
Material Nylon 12
Outside Diameter 1/4 in
Series S33
Temperature Rating -40 to 70 deg C
Type Silicone-Free
Working Pressure 247 psi

Country of Origin: Italy

Standards and Approvals: RoHS Compliant

Application:
Pneumatic systems, vacuum, oils, coolants, water, robotics

Features

  • LONGLIFE model
  • Compatible fluids - compressed air, industrial vacuum, oils, water, solvents
  • Maximum operating pressure at 23 deg C - 247 PSI
  • Operating temperature - -40 to 70 deg C
  • Vacuum level - up to 28 in Hg
  • Nylon 12 inner and outer layer
  • Ether-based polyurethane centre layer
