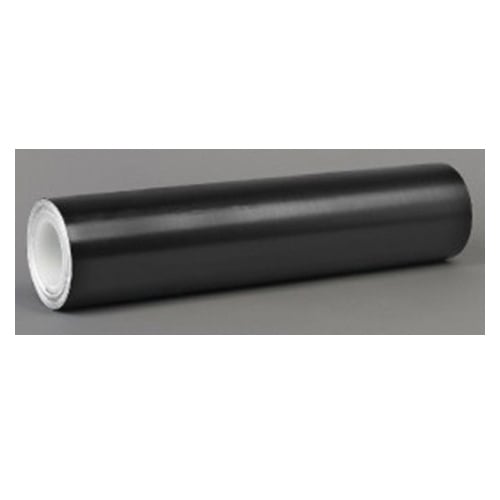

3M™ 0.125-36-403-5BNC (PK5) Anti-Static Squeak Reduction Tape, 36 yd L x 1/8 in W, 5 mil THK, Elastomeric Adhesive, UHMWP Backing, Black


Description

3M™ Squeak Reduction Tape, Anti-Static, Series: 403-5BNC, 36 yd Length, 1/8 in Width, 5 mil Thickness, Black, Elastomeric Adhesive, UHMWP Backing, 90 in-oz Adhesion Strength, 30 in-lb Tensile Strength, 200 deg F Maximum Operating, Resistance Properties: Abrasion and Wear, Specifications Met: ASTM D1000, ASTM D3759

Black anti-static UHMW polyethylene tape is used to protect surfaces from abrasion, wear resistance, friction and electrical conductivity from static dissipation. Use for applications where dust and electrical charge could cause problems. Highly used in the electronics industry, as well as, industrial manufacturing processes containing combustibles where ESD can cause explosions. The anti-static UHMW tape is ideal in applications where static is a concern and lubrication is not possible because of contamination. Use in the industrial, manufacturing and distribution industries to protect against static build-up do to dust collection in chutes and conveyors. Works well to protect against electrostatic charging of powders during bulk powder conveying. Use to line dust collection hoppers to protect against static and the risk of combustion. Protects robotics as well as electronic equipment and components sensitive to dust accumulation and electrical charge buildup.

Specifications

Adhesion Strength 90 in-oz
Adhesive Material Elastomeric
Backing Material UHMWP
Color Black
Length 36 yd
Maximum Operating Temperature 200 deg F
Resistance Properties Abrasion and Wear
Series 403-5BNC
Specifications Met ASTM D1000, ASTM D3759
Tensile Strength 30 in-lb
Thickness 5 mil
Type Anti-Static
Width 1/8 in

Country of Origin: United States

Application:
For used primarily in mechanical applications such as chute liners, wear pads, guide rails and also used as guide surfaces or pads on such items as a computer mouse

Features

  • 10 mil THK, black, non-conductive UHMW PE film with an aggressive elastomeric adhesive
  • Anti-static, protects from electrical conductivity do to static dissipation
  • Offers high impact strength, abrasion and wear resistance
  • Excellent low friction, non-stick surface
  • Helps reduce squeaks, rattles and other noises that occur with movement
  • Self-lubricating, use where lubrication is not possible because of contamination
  • Anti-stick for easy release of many inks, adhesives and other sticky materials
  • Prevents marking or scratching of a product or part
