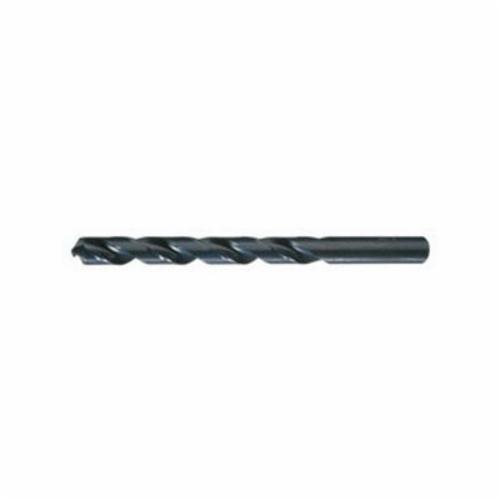

Cle-Line® Cle-Force™ C68022 1600 Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide


Description

Cle-Line® Cle-Force™ Jobber Length Drill Bit, Series: 1600, Imperial, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 5-1/4 in Overall Length, 3-7/8 in Cutting Depth, 2 Flutes, Right Spiral Flute, 3-7/8 in Flute Length, 13/32 in Dia x 1-3/8 in L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron, Nodular Cast Iron and Aluminum

Specifications

Applicable Materials Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron, Nodular Cast Iron and Aluminum
Cutting Depth 3-7/8 in
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.4062 in
Drill Size - Fraction 13/32 in
Finish Black Oxide
Flute Length 3-7/8 in
Flute Type Right Spiral
Material HSS
Number of Flutes 2
Overall Length 5-1/4 in
Point Angle 118 deg
Point Type Radial
Series 1600
Shank Size 13/32 in Dia x 1-3/8 in L
Shank Type Straight
Through Coolant (Yes/No) No

Standards and Approvals: ASME B94.11M

Application:
General Purpose Drilling and Maintenance Applications

Features

  • HSS substrate with general purpose geometry
  • Black oxide finish for increased wear resistance and improved lubricity
