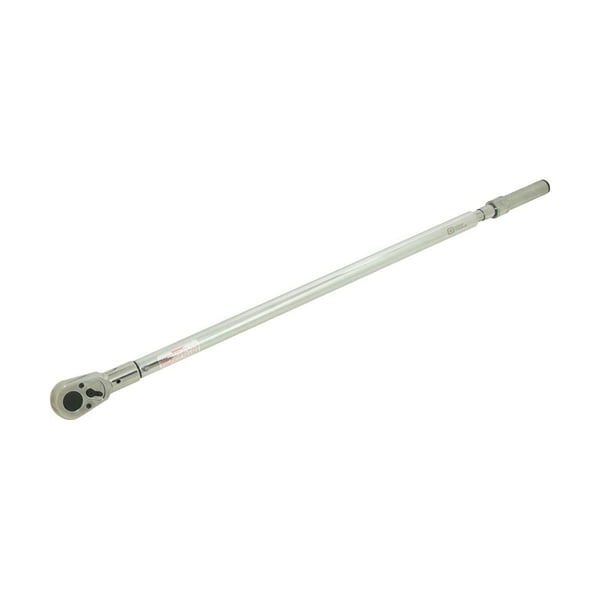

Gray Tools MFR600HD Micro-Adjustable Torque Click Wrench, 3/4 in Drive, 100 to 600 ft-lb, Fixed/Teardrop Head, 43 in OAL, ASME B107.14-2004, ANSI Specified


Description

Gray Tools Torque Click Wrench, Micro-Adjustable, 3/4 in Drive, 100 to 600 ft-lb, Fixed/Teardrop, 43 in Overall Length, CW/CCW, +/-3% CW, +/-4% CCW Accuracy, Knurled Grip, ASME B107.14-2004, ANSI Specified Specifications Met, Metal

Gray Tools offers a range of professional quality torque tools in 1/4 to 1 in drive. The reliable and trusted product assortment includes micrometer and dial type torque wrenches, torque limiting screwdrivers and torque multipliers. All Gray Tools torque tools are 100% quality tested at the time of manufacturing and manufactured to the ANSI B107.14 specifications, US Federal Specification GGG-W-686 and ISO Standard 6789. These quality standards ensure the torque accuracy to be within +/-3% for micrometer style torque wrenches and 4% accuracy with dial type torque wrenches when the wrench is used within the 20 to 100% rated capacity.

Specifications

Accuracy +/-3% CW, +/-4% CCW
Drive Size 3/4 in
Handle Type Knurled Grip
Head Type Fixed/Teardrop
Material Metal
Overall Length 43 in
Rotation Type CW/CCW
Specifications Met ASME B107.14-2004, ANSI Specified
Torque Range 100 to 600 ft-lb
Type Micro-Adjustable

Includes: Plastic Storage Case

Warranty: 1 year Limited

Standards and Approvals: Federal Specification U.S. GGG-W-686, NIST Certified, ISO 6789, CSA Approved

Features

  • Individually serialized with matching factory certificate of calibration traceable to N.I.S.T
  • Easy to read scales and positive lock with pull down locking ring
  • Rugged metal knurled handles
  • Quick-release button for faster socket retention and removal
  • Fast, accurate and easy to set in any industrial workplace
