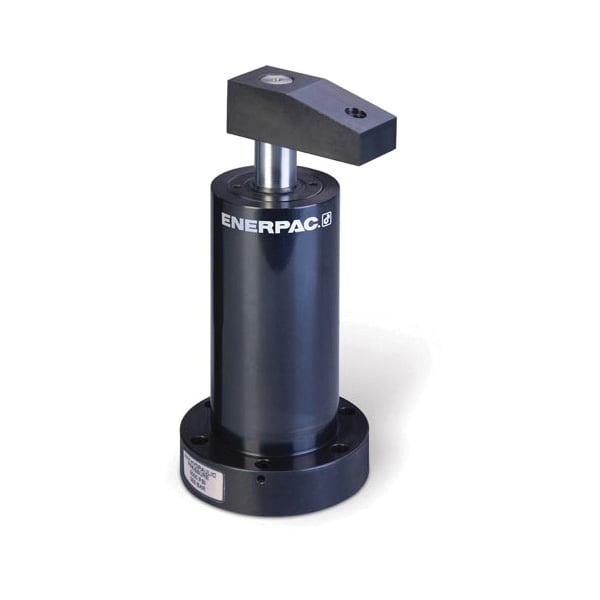

Enerpac® Collet-Lok® MPFN50V Lower Flange Mounted Non-Rotational Swing Clamp Cylinder, 24.2 mm L Stroke, 4.4 kN Max Force


Description

Enerpac® Collet-Lok® Swing Clamp Cylinder, Lower Flange Mounted Non-Rotational, Series: MP Series, 24.2 mm Stroke Length, 4.4 kN Maximum Force, G1/4 Port, 201.2 mm Extended Height, 177 mm Retracted Height, M16 x 1.5 Plunger Thread, 350 to 100 bar Pressure, 9 in Diameter Mounting Hole

Specifications

Extended Height 201.2 mm
Maximum Force 4.4 kN
Mounting Hole Diameter 9 in
Plunger Thread Size M16 x 1.5
Port Size G1/4
Pressure Rating 350 to 100 bar
Retracted Height 177 mm
Series MP Series
Stroke Length 24.2 mm
Type Lower Flange Mounted Non-Rotational

Warranty: Limited

Country of Origin: Netherlands

Standards and Approvals: EAR99
