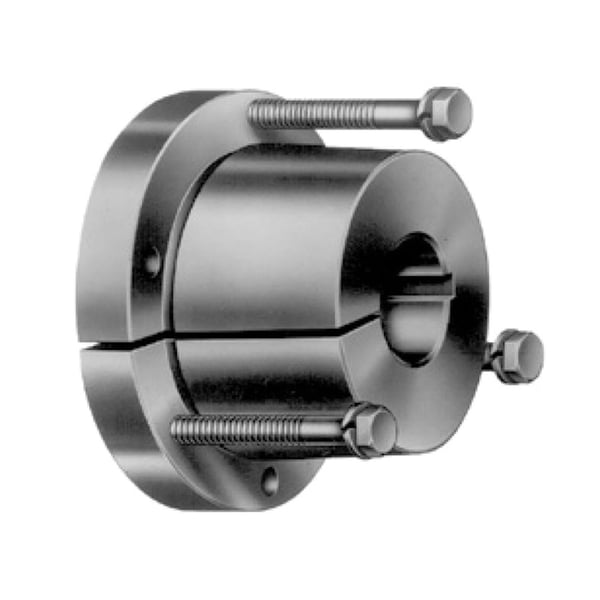

Gates® Power Transmission SK 1.3/4 Finished Bore QD Bushing, 1-3/4 in Dia Bore, 2.81 in Dia Barrel, 3-7/8 in Dia Flange, 1-15/16 in OAL, Steel


Description

Gates® Power Transmission QD Bushing, Finished Bore, 1-3/4 in Bore Dia, 2.81 in Barrel Dia, 4-1/2 in Hub Dia, 3-5/16 in Bolt Circle, 3-7/8 in Flange Dia, 0.56 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 2 in Screw, 7000 in-lb, For Use With: QD Style Sheaves, Sprockets and Pulleys, 1-15/16 in Overall Length, 3/8 x 3/16 in Keyway, Steel

Gates bushings are engineered with precision tolerance for use with sheaves, sprockets, pulleys, and other power transmission applications. Bushings are available in English and metric bores and come in a variety of materials including sintered steel, cast iron, steel, ductile iron, and stainless steel.

Specifications

Barrel Diameter 2.81 in
Bolt Circle Diameter 3-5/16 in
Bore Diameter 1-3/4 in
Flange Diameter 3-7/8 in
Flange Thickness 0.56 in
Hub Diameter 4-1/2 in
Keyway Size 3/8 x 3/16 in
Material Steel
Number of Bolt Holes 3
Overall Length 1-15/16 in
Screw Size 5/16-18 x 2 in
Suitable For Use With QD Style Sheaves, Sprockets and Pulleys
Torque Rating 7000 in-lb
Type Finished Bore

Country of Origin: United States

Features

  • Size 7838 bushing
  • Bushings are made to precise tolerances
