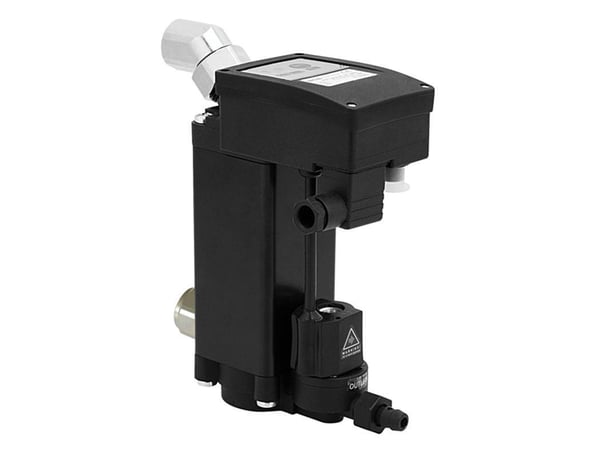

TOPRING 59.254 S59 Zero Air Loss Electronic Drain, 1/2 in FNPT Connection, 1 to 60 deg C, 230 psi Pressure, 115 V AC
TOPRING 59.254 S59 Zero Air Loss Electronic Drain, 1/2 in FNPT Connection, 1 to 60 deg C, 230 psi Pressure, 115 V AC
SKU: JAL324
Manufacturer Part Number: 59.254
UPC: 774679038441
Brand: TOPRING
Description
Specifications
| Compressor Performance | 1278 scfm |
| Connection Size | 1/2 in FNPT |
| Dimensions | 214 mm H x 69 mm W x 163 mm D |
| Filter Performance | 12781 scfm |
| Material | Polyamide/Stainless Steel |
| Pressure Rating | 230 psi |
| Refrigeration Dryer Performance | 2556 scfm |
| Series | S59 |
| Temperature Rating | 1 to 60 deg C |
| Type | Zero Air Loss |
| Voltage Rating | 115 V AC |
Country of Origin: Italy
Features
- No wastage of compressed air
- Electronic condensate drains with digital level control
- Intelligent logic based on an 8-bit microprocessor recording events on an integral flash memory
- Easy-lock revolving connection
- Adjustable for vertical and/or horizontal connections
- Integrated filter to collect contaminated condensate
- Easy to clean and maintain
- Remote alarm connection
- Receiver with treatment resistent to most aggressive condensates, like those of oil-free compressors
- Fast easy-lock connection
- Connection, for drainage tube
- Built-in dirt screen easy to clean prevents the solenoid from clogging
- Dry alarm contact - The drain is equiped with a special alarm cycle that starts working in case of trouble
- Revolving top condensate inlet offering an additional balance line connection
- Have been designed to solve the problem of condensation water drainage from production plants and compressed air distribution systems
- Controlled drainage of condensation water without any compressed air leaks
- All versions are suitable for working with any type of condensation water even the most aggressive one or water containing a high percentage of oil
- A built-in receiver of filter, that is easy to clean, prevents the solenoid valve from clogging
