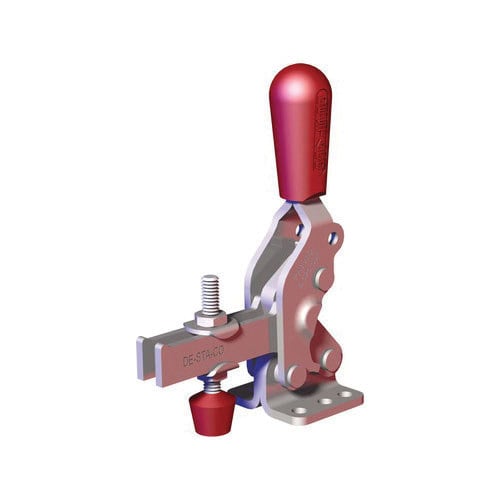

DESTACO 2007-USS Standard Hold-Down Toggle Clamp, Stainless Steel, 1000 lbf Holding, 1-1/4 in H Under Arm, M8 or 5/16 in Thread


Description

DESTACO Hold-Down Toggle Clamp, Standard, Series: 2007, 1000 lbf Holding, 1-1/4 in Height Under Arm, 7.17 in Overall Height, 6.6 in Overall Length, 5/16 in, M8 Thread, Vertical U-Bar, 76 deg Bar Opening, Flanged Base, 3/4 x 1-1/4 in Mounting Centers, Stainless Steel

DESTACO's stainless steel product offering includes 60 models of vertical, horizontal, Pull Action Latch and Straight-Line Action Toggle Clamps. They are, fabricated with corrosion, chemical and heat-resistant stainless steel. These stainless steel clamps are suitable for many applications that demand a clamp that is more robust than traditional steel models and are well-suited for outdoor use and food processing, as well as plating, finishing, chemical handling, pharmaceutical manufacturing and other high temperature or harsh environments. They offer greater capabilities in a cost-effective package.

Specifications

Bar Opening 76 deg
Bar Type Vertical U-Bar
Base Type Flanged
Height Under Arm 1-1/4 in
Holding Capacity 1000 lbf
Material Stainless Steel
Mounting Centers 3/4 x 1-1/4 in
Overall Height 7.17 in
Overall Length 6.6 in
Series 2007
Thread Size 5/16 in, M8
Type Standard

Includes: 207943-M Spindle Assembly and 507907 Flanged Washer

Country of Origin: Thailand

Application:
Checking Fixtures, Assembly and Test, Light Machining and Woodworking

Features

  • New generation Toggle Clamp with over 2.5X the capacity of our legacy models
  • Longer handle with greater hand clearance
  • Longer clamp arm
  • Spindle contacts workpiece vertically
