Gates® Power Transmission PowerGrip® 178XL037 Extra Light Timing Belt, 3/8 in W, 17.8 in OAL, 0.2 in Pitch, 89 Teeth, Neoprene


Description

Gates® Power Transmission PowerGrip® Timing Belt, Extra Light, Series: 9257, 89 Teeth, 0.2 in Pitch, 17.8 in Overall Length, 3/8 in Width, 0.62 in Minimum Pulley Dia, -30 to 180 deg F, Neoprene, Fiberglass Reinforced Material

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.

Specifications

Material Neoprene
Minimum Pulley Diameter 0.62 in
Number of Teeth 89
Overall Length 17.8 in
Pitch 0.2 in
Reinforced Material Fiberglass
Series 9257
Temperature Range -30 to 180 deg F
Type Extra Light
Width 3/8 in

Country of Origin: United States

Standards and Approvals: RMA Standard

Application:
Office Machines, Machine Tools, Postage Equipment, Sewing Machines, Vending Machines, Agriculture, Outdoor Power Equipment, Food Processing, HVAC, Oil Fields, Wood, Paper, Sand and Gravel Applications

Features

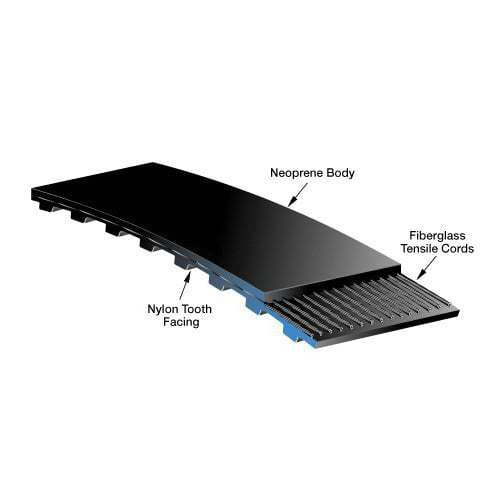

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
  • Neoprene body provides protection against grime, grease, oil and moisture
  • The trapezoidal tooth profile makes this belt well suited for use in positioning applications
