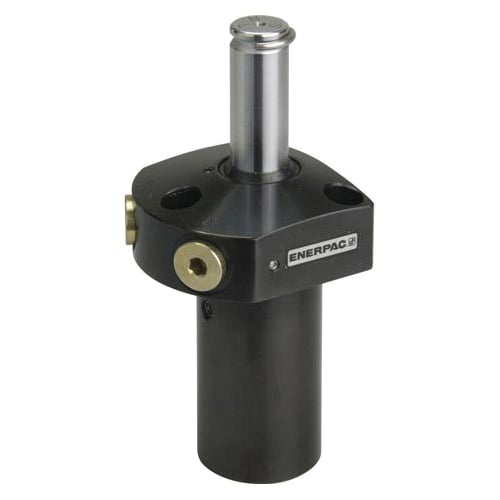

Enerpac® SUSS51 Upper Flange Mounted Swing Clamp Cylinder With CAS-51 Standard Clamp Arm, 0.89 in L Stroke, 1200 lb Max Force, Single Acting Function
Enerpac® SUSS51 Upper Flange Mounted Swing Clamp Cylinder With CAS-51 Standard Clamp Arm, 0.89 in L Stroke, 1200 lb Max Force, Single Acting Function
SKU: IER198
Manufacturer Part Number: SUSS51
UPC: 662005231195
Brand: Enerpac®
Description
Specifications
| Bolt Size | 1/4-28 UNF |
| Effective Area Clamped | 0.28 sq-in |
| Extended Height | 5.33 in |
| Function | Single Acting |
| Maximum Force | 1200 lb |
| Maximum Oil Flow | 25 cu-in/min |
| Mounting Hole Diameter | 0.268 in |
| Number of Bolts | 3 |
| Oil Capacity Clamped | 0.25 cu-in |
| Port Size | #4 |
| Pressure Rating | 500 to 5000 psi |
| Series | SU Series |
| Stroke Length | 0.89 in |
| Type | Upper Flange Mounted |
Includes: Mounting Bolt and O-Ring
Warranty: Limited
Country of Origin: United States
Standards and Approvals: EAR99
Features
- Flexible design allows for manifold or threaded oil port connection
- Low profile mounting style allows body to be below mounting surface
- Simple mounting preparation and easy installation - three or four mounting bolts
- Double oil connection - threaded port or manifold mount
- Symmetrical rectangular flange design enables clamping at three sides of the cylinder
- The Enerpac® upper flange swing clamps are designed for integrated manifold mounting solutions
- Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated O-ring ports
