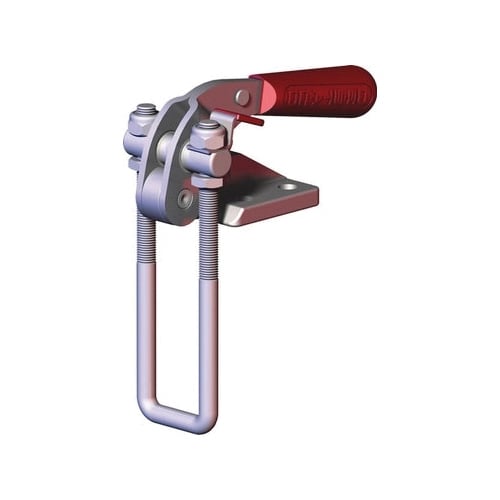

DESTACO 374-M-50 Pull Action Standard Latch Clamp With 50 mm Longer Hook, Steel, 4000 lb, 0.56 in, M10


Description

DESTACO Latch Clamp, Pull Action Standard, Series: 374 Series, 4000 lb Holding, 0.56 in Height Under Arm, 6.6 in Overall Length, M10 Thread, Straight Handle, Vertical U-Hook Bar, Flanged Base, 1-1/4 x 1-1/2 in Mounting Centers, Steel

Specifications

Bar Type Vertical U-Hook
Base Type Flanged
Handle Type Straight
Height Under Arm 0.56 in
Holding Capacity 4000 lb
Material Steel
Mounting Centers 1-1/4 x 1-1/2 in
Overall Length 6.6 in
Series 374 Series
Thread Size M10
Type Pull Action Standard

Includes: U-Hook

Country of Origin: United States

Application:
For latching applications on molds, doors, lids, access covers, drums, containers and vessels

Features

  • The clamp is mounted perpendicular to the latch surface
  • Supplied with threaded U-hooks for easy adjustment
  • Patented thumb control lever provides one handed operation
