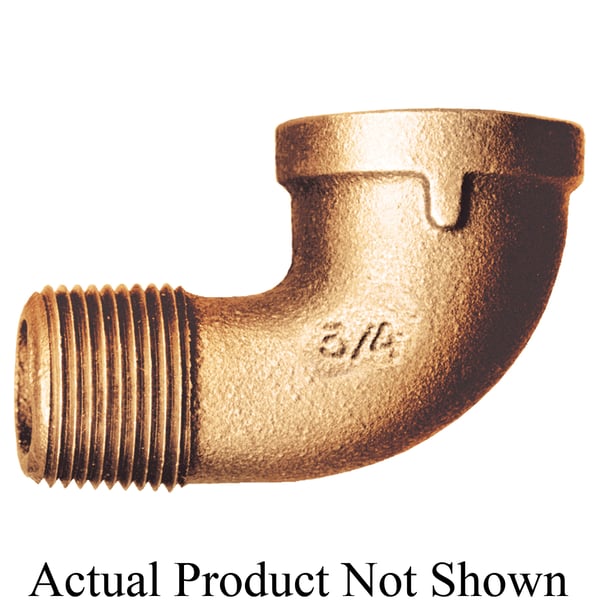

Fairview 116CA-D Bronze Pipe Street Elbow, 1/2 in Nominal, MNPT x FNPT End Style, Brass, Import


Description

Fairview Bronze Pipe Street Elbow, Series: 116CA, 90 deg Elbow Fitting/Connector, 1/2 in Nominal, MNPT x FNPT End Style, 1.2 in Length, 600 psi Pressure, Brass, -65 to 250 deg F, 0.76 in W x 1.008 in H Dimensions, Import

Specifications

Dimensions 0.76 in W x 1.008 in H
Domestic/Import Import
End Style MNPT x FNPT
Fitting/Connector Type 90 deg Elbow
Length 1.2 in
Material Brass
Nominal Size 1/2 in
Pressure Rating 600 psi
Series 116CA
Temperature Rating -65 to 250 deg F

Warranty: 1 year

Country of Origin: China

Standards and Approvals: ASME 16.24, ASTM B584

Application:
Air, Brass, Industrial, Iron Pipe, LP Gas, Natural Gas, Oil, Plumbing, Steel and Water Applications

Features

  • Pipe threads must be sealed using approved thread sealant for gas applications
