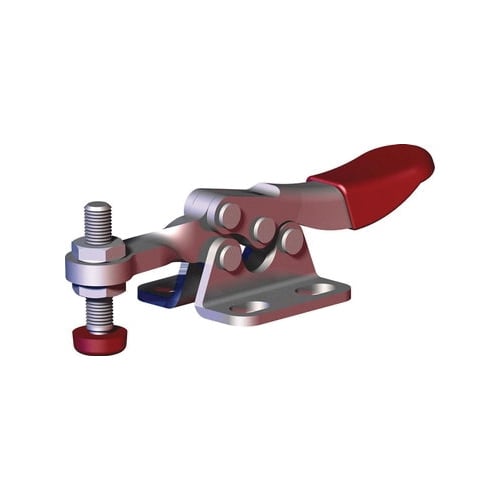

DESTACO 205-S Horizontal Hold-Down Standard Toggle Locking Clamp, Steel, 60 lb, 0.36 in, M4x0.7


Description

DESTACO Toggle Locking Clamp, Horizontal Hold-Down Standard, Series: 205 Series, 60 lb Holding, 0.36 in Height Under Arm, 0.67 in Overall Height, 2.85 in Overall Length, M4x0.7 Thread, Straight Handle, Solid Bar, 94 deg Bar Opening, Flanged Base, 0.62 x 0.62 in Mounting Centers, Steel, Electro Plated Zinc

Specifications

Bar Opening 94 deg
Bar Type Solid
Base Type Flanged
Finish Electro Plated Zinc
Handle Type Straight
Height Under Arm 0.36 in
Holding Capacity 60 lb
Material Steel
Mounting Centers 0.62 x 0.62 in
Overall Height 0.67 in
Overall Length 2.85 in
Series 205 Series
Thread Size M4x0.7
Type Horizontal Hold-Down Standard

Includes: 205208-M Neoprene Spindle Assembly

Country of Origin: United States

Application:
Assembly, Closures, Woodworking and Light Duty Clamping

Features

  • The smallest in our line of horizontal hold-down clamps
