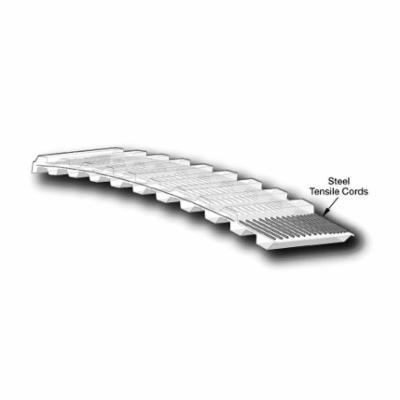

Gates® Power Transmission Synchro-Power® T5-340-32 Metric T Synchronous Belt, 32 mm W, 340 mm OAL, 5 mm Pitch, 68 Teeth, Polyurethane


Description

Gates® Power Transmission Synchro-Power® Synchronous Belt, Metric T, Series: 7762, 68 Teeth, 5 mm Pitch, 340 mm Overall Length, 32 mm Width, -22 to 176 deg F, Polyurethane, Steel Reinforced Material

Endless urethane construction provides higher strength as compared to welded urethane belts, making them well suited for use in power transmission and high performance positioning applications.

Specifications

Material Polyurethane
Number of Teeth 68
Overall Length 340 mm
Pitch 5 mm
Reinforced Material Steel
Series 7762
Temperature Range -22 to 176 deg F
Type Metric T
Width 32 mm

Country of Origin: United States

Standards and Approvals: RMA Standard

Application:
Office Machines, Machine Tools, Postage Equipment, Sewing Machines, Vending Machines, Agriculture, Outdoor Power Equipment, Food Processing, HVAC, Oil Fields, Wood, Paper, Sand and Gravel Applications

Features

  • Abrasion, chemical and wear resistant for extended life
  • Steel tensile cord for length stability
