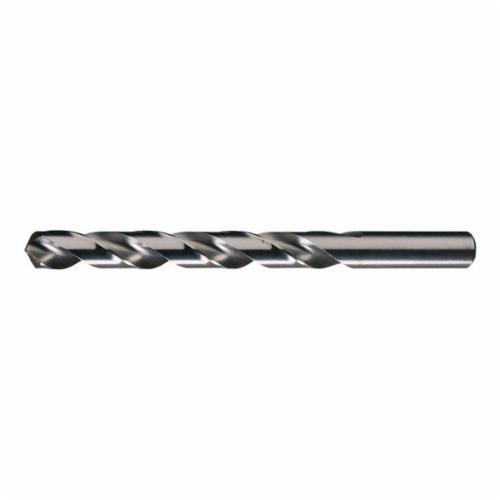

Chicago-Latrobe® 44336 150D General Purpose Jobber Length Drill Bit, #66 Drill - Wire, 0.033 in Drill - Decimal Inch, 118 deg Point, HSS, Bright


Description

Chicago-Latrobe® Jobber Length Drill Bit, General Purpose, Series: 150D, Imperial, #66 Drill - Wire, 0.033 in Drill - Decimal Inch, 1-3/8 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1/2 in Flute Length, 0.033 in Dia x 0.875 in L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright, Applicable Materials: Non-Ferrous Metals

Specifications

Applicable Materials Non-Ferrous Metals
Cutting Depth 5XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.033 in
Drill Size - Wire #66
Finish Bright
Flute Length 1/2 in
Flute Type Right Spiral
Material HSS
Number of Flutes 2
Overall Length 1-3/8 in
Point Angle 118 deg
Point Type Radial
Series 150D
Shank Size 0.033 in Dia x 0.875 in L
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose

Standards and Approvals: DIN 338

Features

  • General purpose geometry for drilling in a wide range of operating conditions and materials
