Gates® Power Transmission PowerGrip® TruMotion® E174XL037 Extra Light Timing Belt, 87 Teeth, 0.2 in Pitch, 17.4 in OAL, 3/8 in W, Polymer Rubber


Description

Gates® Power Transmission PowerGrip® TruMotion® Timing Belt, Extra Light, Series: 9582, 87 Teeth, 0.2 in Pitch, 17.4 in Overall Length, 3/8 in Width, 0.64 in Minimum Pulley Dia, -5 to 70 deg C, Polymer Rubber, Fiberglass Reinforced, White

The new PowerGrip® TruMotion® belts are available in all of Gates® light duty synchronous pitches.

Specifications

Color White
Material Polymer Rubber
Minimum Pulley Diameter 0.64 in
Number of Teeth 87
Overall Length 17.4 in
Pitch 0.2 in
Reinforced Material Fiberglass
Series 9582
Temperature Range -5 to 70 deg C
Type Extra Light
Width 3/8 in

Warranty: Limited

Country of Origin: United States

Standards and Approvals: FDA Approved, RMA Standard

Application:
Data Storage Equipment, Printers, Plotters, Medical Equipment, Food Processors, Money Handling, Copiers and Other Office Equipment

Features

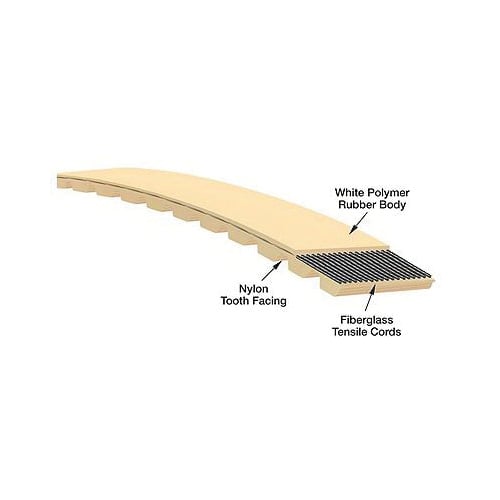

  • Fiberglass tensile cord provides excellent flex life and high resistance to elongation
  • The white polymer rubber body provides a non marking, cleaner running construction
  • The polymer free nylon tooth facing provides a durable wear surface for longer service life and lower noise levels
  • The TruMotion® belt construction utilizes a clean white polymer and a polymer free nylon tooth surface, resulting in minimal dusting
