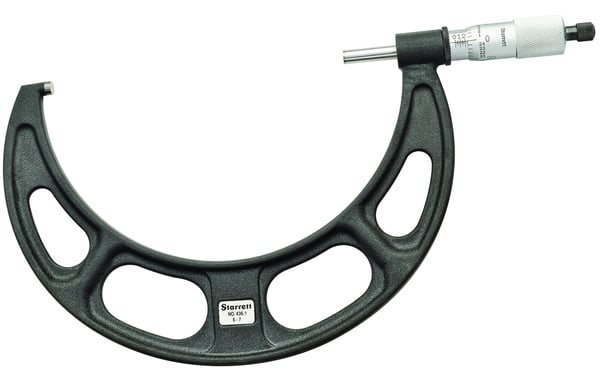

Starrett® T436.1XRL-7 Mechanical Outside Micrometer, 6 to 7 in, Graduations: 0.0001 in, Carbide Tip, Satin Chrome


Description

Starrett® Outside Micrometer, Mechanical, Series: 436.1, 6 to 7 in, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Anvil, Flat Spindle, 0.3 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 12-11/32 in L x 13/16 in W x 6-19/32 in H

Starrett 436.1 Outside Mechanical Micrometers are the most popular precision micrometers used by skilled workmen worldwide. They are accurate, rugged, and easy to use. T436.1XRL-7 features a 6-7" range, .0001" graduations, and a Flat, Carbide Anvil. The locknut is Knurled Ring Type, with ratchet and speeder thimble. Produced with a black wrinkle frame finish. Standard Letter of Certification (SLC) is available as an optional add-on.

Specifications

Anvil Type Flat
Dimensions 12-11/32 in L x 13/16 in W x 6-19/32 in H
Finish Satin Chrome
Graduations 0.0001 in
Material Carbide Tip
Measuring Range 6 to 7 in
Resolution 0.0001 in
Series 436.1
Spindle Diameter 0.3 in
Spindle Type Flat
Thimble Type Ratchet
Type Mechanical

Country of Origin: United States

Standards and Approvals: PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • The most popular precision micrometers used by skilled workmen worldwide
  • Accurate, rugged, and easy to use
  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Balanced frame and thimble design ensure easy handling
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Quick and easy adjustment
  • Micro-lapped measuring faces
  • Extremely hard and stable one-piece spindle
