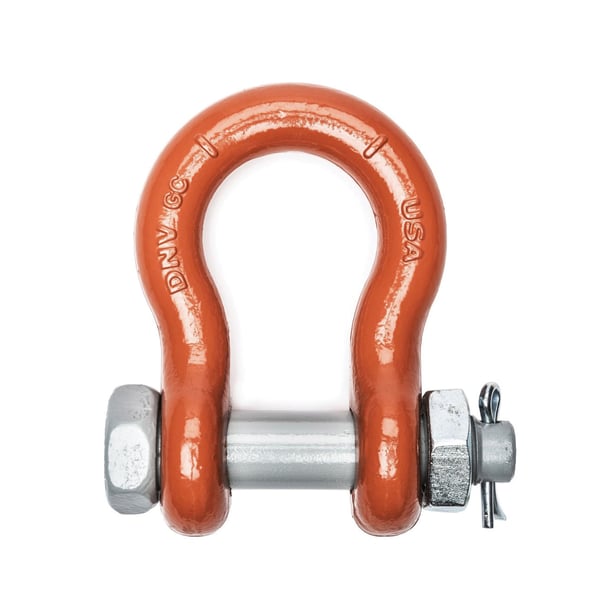

Campbell® 5391635DNV Grade-6 Anchor Shackle, 8.5 ton Load, 1 in, Bolt Pin, Galvanized Polycoated


Description

Campbell® Anchor Shackle, Grade-6, 8.5 ton Load, 1 in Size, Bolt Pin, 3-3/4 in Inner Length, 2-1/2 in Inner Width, 1-11/16 in Opening, 2-3/8 in Overall Depth, Forged Carbon Steel Body, Galvanized Polycoated

Campbell® portfolio of Anchor Shackle is now even more robust. Our new line of DNV approved bolt type Anchor Shackle feature innovative design change in our forging and heat treating process to comply with the growing off shore rigging industry.

Specifications

Body Material Forged Carbon Steel
Finish Galvanized Polycoated
Inner Length 3-3/4 in
Inner Width 2-1/2 in
Load Capacity 8.5 ton
Opening Size 1-11/16 in
Overall Depth 2-3/8 in
Pin Type Bolt
Size 1 in
Type Grade-6

Country of Origin: United States

Standards and Approvals: ASTM A153, ASME B30.26 and EN 13889, ASTM A952, DNV-GL 2.7.1 Marking of Lifting Sets Section 8.6

Features

  • 5:1 design factor
  • Made in the USA
  • Do not exceed the working load limit
