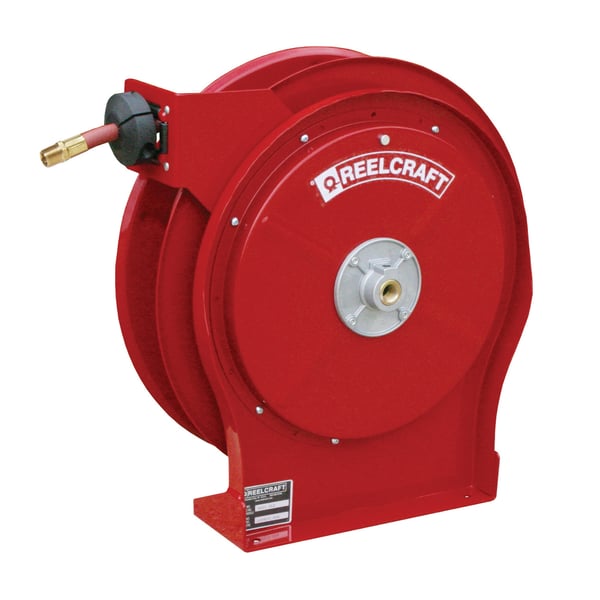

Reelcraft® A5825 OLP 5000 Low Pressure Premium Duty Hose Reel With Hose, 1/2 in ID x 3/4 in OD x 25 ft L Hose, 300 psi Pressure, 14 in Dia x 2-1/2 in W Reel, Domestic
Reelcraft® A5825 OLP 5000 Low Pressure Premium Duty Hose Reel With Hose, 1/2 in ID x 3/4 in OD x 25 ft L Hose, 300 psi Pressure, 14 in Dia x 2-1/2 in W Reel, Domestic
SKU: ETM590
Manufacturer Part Number: A5825 OLP
UPC: 699567000761
Brand: Reelcraft®
Description
Specifications
| Color | Red |
| Dimensions | 14-3/8 in H x 14 in W x 6-1/8 in D |
| Domestic/Import | Domestic |
| Drive Type | Retractable Spring |
| Finish | Powder Coated |
| Hose Capacity | 1/2 in ID x 3/4 in OD x 25 ft L |
| Material | Reinforced Stainless Steel |
| Mounting Type | Bench/Ceiling/Floor/Truck/Wall |
| Pressure Rating | 300 psi |
| Reel Diameter | 14 in |
| Reel Width | 2-1/2 in |
| Seal Type | Aflas® |
| Series | 5000 |
| Swivel Material | Nickel Plated Steel |
| Type | Low Pressure Premium Duty |
Country of Origin: United States
Standards and Approvals: PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Features
- Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
- All steel components are powder coated for maximum corrosion resistance
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quiet speed latch - the latch cam is designed for reliable quiet operation
- 1/2 in MNPT hose outlet
- 3/8 in FNPT reel inlet
- 150 deg F maximum temperature rating
