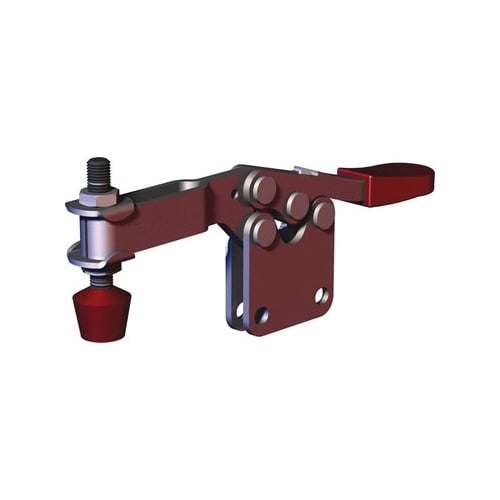

DESTACO 215-UB Horizontal Hold-Down Low Profile Toggle Locking Clamp, Steel, 200 lb, 1.15 in, M6x1


Description

DESTACO Toggle Locking Clamp, Horizontal Hold-Down Low Profile, Series: 215 Series, 200 lb Holding, 1.15 in Height Under Arm, 1.91 in Overall Height, 5.46 in Overall Length, M6x1 Thread, Straight Handle, U-Bar Bar, 87 deg Bar Opening, Straight Base, 1.06 x 0.87 in Mounting Centers, Steel, Electro Plated Zinc

Specifications

Bar Opening 87 deg
Bar Type U-Bar
Base Type Straight
Finish Electro Plated Zinc
Handle Type Straight
Height Under Arm 1.15 in
Holding Capacity 200 lb
Material Steel
Mounting Centers 1.06 x 0.87 in
Overall Height 1.91 in
Overall Length 5.46 in
Series 215 Series
Thread Size M6x1
Type Horizontal Hold-Down Low Profile

Includes: 202208-M Neoprene Spindle Assembly and 215105 Flanged Washer

Country of Origin: Thailand

Application:
Assembly, Checking Fixtures, Closures and Woodworking

Features

  • Minimum overhead clearance is required for this low profile clamp
