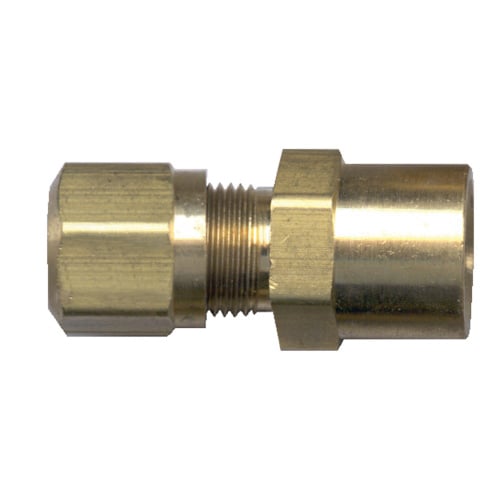

Fairview 1466-6A DOT Air Brake Connector, 3/8 x 1/8 in Nominal, Tube x FNPT End Style, Brass, Import


Description

Fairview DOT Air Brake Connector, Series: 1466, Connector Fitting/Connector, 3/8 x 1/8 in Nominal, Tube x FNPT End Style, 1.446 in Length, 400 psi Pressure, -65 to 250 deg F, Brass, 0.628 in W x 0.628 in H Dimensions, Import

Specifications

Dimensions 0.628 in W x 0.628 in H
Domestic/Import Import
End Style Tube x FNPT
Fitting/Connector Type Connector
Length 1.446 in
Material Brass
Nominal Size 3/8 x 1/8 in
Pressure Rating 400 psi
Series 1466
Temperature Rating -65 to 250 deg F

Warranty: 1 year

Country of Origin: Taiwan

Standards and Approvals: FMVSS 106, SAE J844

Application:
Automotive, Auxiliary System, Industrial, Mobile Air Brake, Trailer and Truck Applications

Features

  • Fairview female Pipe Connector air brake fittings for SAE J844D Nylon tube are only made using high quality C360 or C377 brass
  • This lightweight, flexible and UV-stabilized tube is highly-resistant to abrasion, oil, grease and road salt
