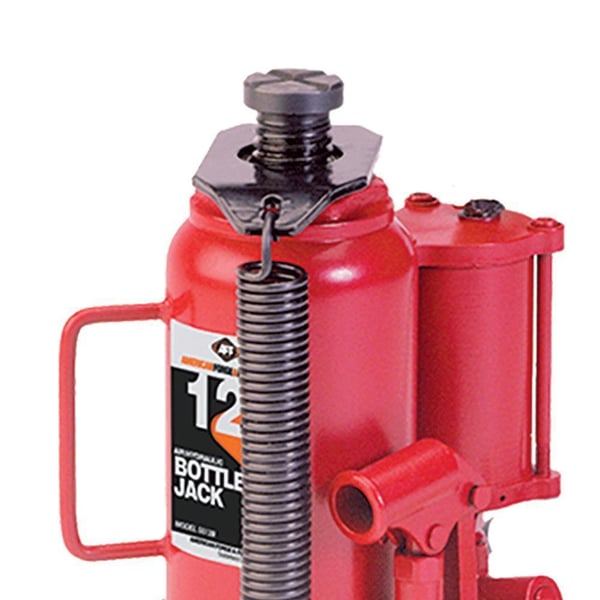

AFF® 5512B Heavy Duty Air Assist/Hydraulic Bottle Jack With Machine Hardened Steel Saddles, Centered Pumps and Rams, 12 ton Lifting, 10-1/4 in H Min Lifting, 19-3/4 in H Max Lifting, 8-1/2 x 5 in Base


Description

AFF® Bottle Jack, Heavy Duty Air Assist/Hydraulic, 12 ton Lifting, 10-1/4 in Minimum Lifting Height, 19-3/4 in Maximum Lifting Height, 8-1/2 x 5 in Base, 3 in Extension Screw, Steel, Red

AFF® air/hydraulic bottle jacks are used to lift heavy duty trucks, construction and heavy farm equipment. Both have centered pumps and rams with heat treated pistons for balance and easy positioning. Saddles are made of machine-hardened steel. Each operates at 90 to 180 psi and are factory pretested to 150% of its rated capacity. They also include a safety bypass system to prevent possible damage from ram over-extension.

Specifications

Base Size 8-1/2 x 5 in
Extension Screw 3 in
Finish Red
Lifting Capacity 12 ton
Material Steel
Maximum Lifting Height 19-3/4 in
Minimum Lifting Height 10-1/4 in
Type Heavy Duty Air Assist/Hydraulic

Warranty: 1 year Limited

Country of Origin: China

Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Application:
For lifting heavy duty trucks, construction and heavy farm equipment

Features

  • Fast and efficient air pump reduces lifting time and has a built-in relief mechanism which prevents accidental overload
  • Unique design allows for manual operation when air is not available
  • Centered pumps and rams with heat-treated pistons provide balance and easy positioning
  • Saddles are made of machine-hardened steel
  • Longer wear life due to internally machined oil passages, smooth bearing surfaces and close tolerances
