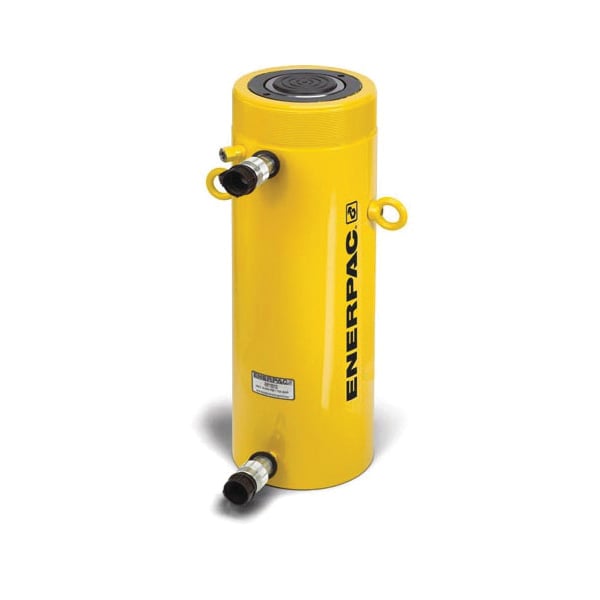

Enerpac® RR10018 Double Acting General Purpose Hydraulic Return Solid Plunger Hydraulic Cylinder, 103.2 ton Advance/48 ton Retract Capacity, 5.13 in Bore, 18.13 in L Stroke, 27.06 in Retract, 3 in Dia Rod, 10000 psi Pressure


Description

Enerpac® Hydraulic Cylinder, Double Acting General Purpose Hydraulic Return Solid Plunger, Series: RR Series, 103.2 ton Advance/48 ton Retract Capacity, 5.13 in Bore, 18.13 in Stroke Length, 27.06 in Retract, Base Mounting, 3/8-18 NPTF Port, 3 in Rod Diameter, 10000 psi Pressure, Steel Housing Material, Baked Enamel, 7 in OD x 45.19 in H

Specifications

Bore Size 5.13 in
Capacity 103.2 ton Advance/48 ton Retract
Dimensions 7 in OD x 45.19 in H
Finish Baked Enamel
Housing Material Steel
Mounting Type Base
Port Size 3/8-18 NPTF
Pressure Rating 10000 psi
Retract 27.06 in
Rod Diameter 3 in
Series RR Series
Stroke Length 18.13 in
Type Double Acting General Purpose Hydraulic Return Solid Plunger

Includes: (1) CR400 High Flow Female Half Hydraulic Coupler

Warranty: Limited

Country of Origin: China

Standards and Approvals: EAR99, ETC Certified

Features

  • Collar threads, plunger threads and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over pressurization
  • Plunger wiper reduces contamination, extending cylinder life
