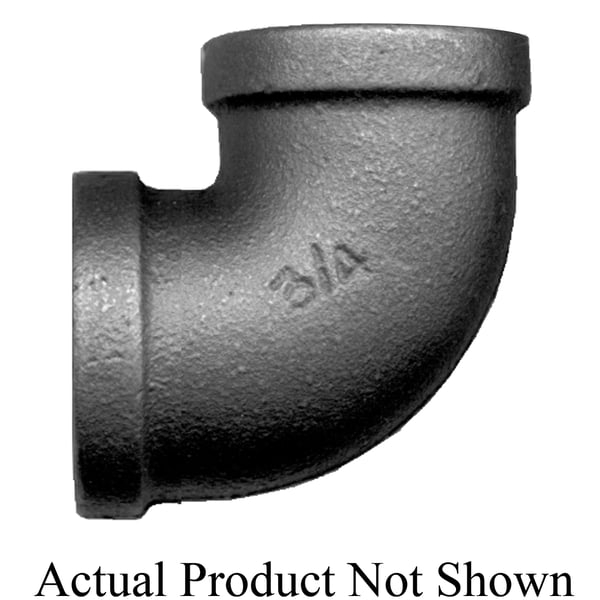

Fairview BI-100-S Pipe Elbow, 4 in Nominal, FNPT End Style, Class 150, Iron, Import


Description

Fairview Pipe Elbow, Series: BI-100, 90 deg Elbow Fitting/Connector, 4 in Nominal, FNPT End Style, 6-1/2 in Length, SCH 40/STD Schedule, Class 150 Pressure Class, 300 psi Pressure, Iron, Black, -20 to 150 deg F, 6-1/2 in W x 5-1/2 in H Dimensions, Import

Specifications

Color Black
Dimensions 6-1/2 in W x 5-1/2 in H
Domestic/Import Import
End Style FNPT
Fitting/Connector Type 90 deg Elbow
Length 6-1/2 in
Material Iron
Nominal Size 4 in
Pressure Class Class 150
Pressure Rating 300 psi
Schedule Rating SCH 40/STD
Series BI-100
Temperature Rating -20 to 150 deg F

Warranty: 1 year

Country of Origin: China

Standards and Approvals: ASTM A197/A197M/B16.3/B16.14/B1.20.1

Application:
Air, Automotive, Gas Control, Industrial, Brass/Iron/Steel Pipe, LP Gas, Natural Gas, Oil, Plumbing, Trailer, Truck and Water Applications

Features

  • Pipe threads must be sealed using approved thread sealant
