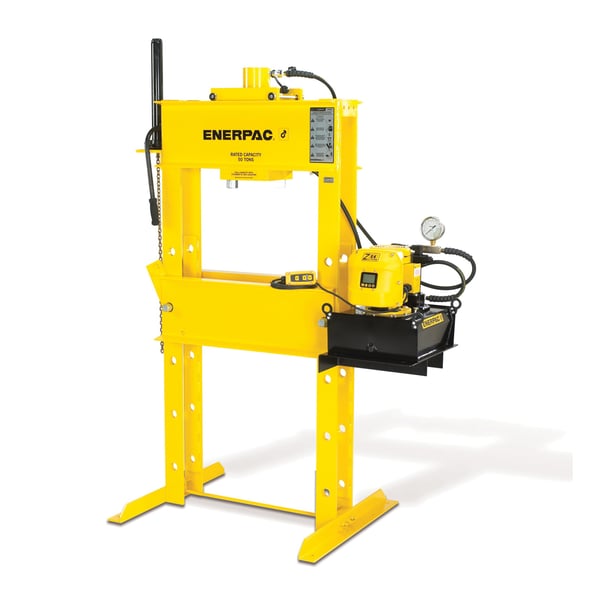

Enerpac® IPE5010 IP Series Hydraulic Press, 50 ton, 42-3/4 in Base, 36 in Base, 13 in, H-Frame Frame, 76 in H, Electric Pump, 10000 psi


Description

Enerpac®, IPE5010, Hydraulic Press, Series: IP Series, 50 ton Capacity, 42-3/4 in Base Length, 36 in Base Width, 76 in Height, Electric Pump, 13 in Stroke Length, 10000 psi Pressure, H-Frame, 82 in H x 44 in W Working Space, 1.02 to 11.04 in/s Speed

Enerpac® hydraulic presses are available in a wide variety of standard capacities and configurations or you can build your own with the easy to use matrix. The press frames are a welded construction for maximum strength and durability and when combined with the power of high pressure hydraulics, will provide years of safe and dependable service in your workshop. Enerpac® press capacities range from 10 to 200 ton and are available in bench, C-frame, arbor, H-frame and roll-frame models.

Specifications

Base Length 42-3/4 in
Base Width 36 in
Capacity 50 ton
Frame Type H-Frame
Height 76 in
Power Type Electric
Pressure Rating 10000 psi
Pump Type Electric
Series IP Series
Speed 1.02 to 11.04 in/s
Stroke Length 13 in
Working Space 82 in H x 44 in W

Includes: GA2 Gauge Adapter, GF50P Hydraulic Force and Pressure Gauge, RC5013 General Purpose Hydraulic Cylinder and ZE4320SBN Electric Pump

Warranty: Limited

Country of Origin: United States

Application:
For service work applications

Features

  • Quality welded frame for maximum strength and long life
  • Exclusive Hydra-Lift® bed for effortless adjustment of the vertical daylight (10 ton models are manual)
  • Roller head design is standard to allow movement and locking of the cylinder from side to side (10 ton, 25 ton and 30 ton are manual)
  • All models in the quick selection chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
