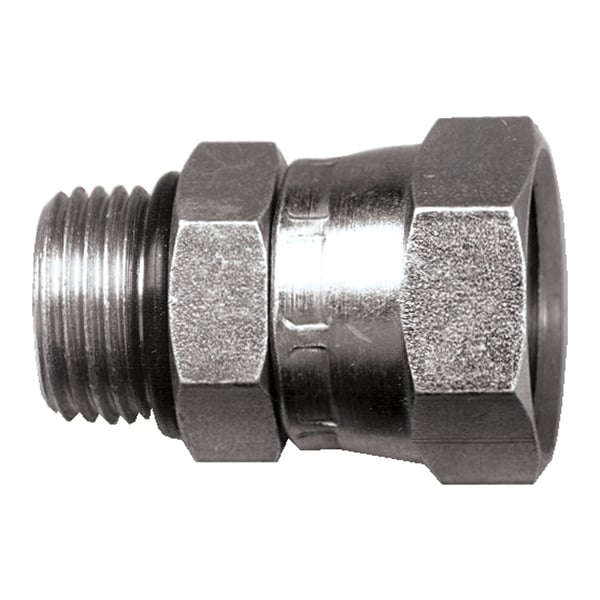

Accutek® SO1120-8C Hydraulic Connector, 3/4-16 x 3/8 in Nominal, Male O-Ring Boss x NPSM Swivel End Style, Steel, Import


Description

Accutek® Hydraulic Connector, Series: SO1120, 3/4-16 x 3/8 in Nominal, Male O-Ring Boss x NPSM Swivel End Style, 1.447 in Length, 4000 psi Pressure, -65 to 250 deg F, Steel, 0.871 in W x 0.871 in H Dimensions, Import

Specifications

Dimensions 0.871 in W x 0.871 in H
Domestic/Import Import
End Style Male O-Ring Boss x NPSM Swivel
Length 1.447 in
Material Steel
Nominal Size 3/4-16 x 3/8 in
Pressure Rating 4000 psi
Series SO1120
Temperature Rating -65 to 250 deg F

Warranty: 1 year

Country of Origin: China

Application:
Automotive, Hydraulic, Industrial, Trailer and Truck Applications

Features

  • Fairview Connector steel O-ring to NPSM swivel combine the leak-free properties of ORB with the orientation ability of NPSM
  • SAE ORB adapter fittings are an excellent choice for medium and high pressure applications
