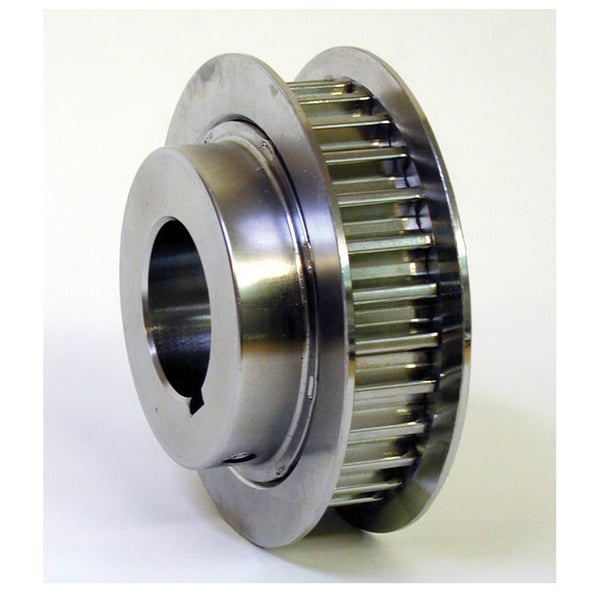

Gates® Power Transmission PowerGrip® GT®2 2MR-42S-09 Synchronous Sprocket, 1/4 to 5/8 in, 1.033 in OD, 42 Grooves, 1.053 in Dia Pitch, 0.53 in W Face


Description

Gates® Power Transmission PowerGrip® GT®2 Synchronous Sprocket, Series: 7842, 1/4 to 5/8 in Bore Dia, 1.033 in Outside Dia, 1.053 in, 42 Grooves, 2 mm Pitch, 0.53 in Face Width, 1.26 in Flange Dia, 0.806 in Hub Dia, MPB Bushing, 27/32 in Overall Length, For Use With: 9 mm W 2MR and 3MR PowerGrip® GT®2 Belts, Aluminum, Clear Anodize

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.

Specifications

Bore Diameter 1/4 to 5/8 in
Bushing Type MPB
Face Width 0.53 in
Finish Clear Anodize
Flange Diameter 1.26 in
Hub Diameter 0.806 in
Material Aluminum
Number of Grooves 42
Outside Diameter 1.033 in
Overall Length 27/32 in
Pitch 2 mm
Pitch Diameter 1.053 in
Series 7842
Suitable For Use With 9 mm W 2MR and 3MR PowerGrip® GT®2 Belts

Country of Origin: United States

Features

  • Precise sprocket design produces positive, press fit to shaft
  • Smaller, narrower sprockets save shaft space
  • Precision manufactured and static balanced to eliminate sprocket wobble
