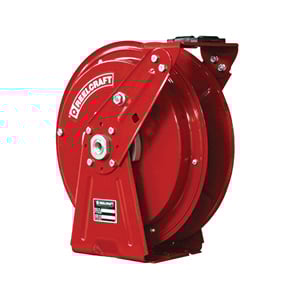

Reelcraft® DP7400 OHP DP7000 Compact Dual Pedestal Hose Reel, 1/4 in ID x 0.58 in OD x 50 ft L Hose, 5000 psi Pressure, Domestic
Reelcraft® DP7400 OHP DP7000 Compact Dual Pedestal Hose Reel, 1/4 in ID x 0.58 in OD x 50 ft L Hose, 5000 psi Pressure, Domestic
SKU: APO200
Manufacturer Part Number: DP7400 OHP
UPC: 699567023517
Brand: Reelcraft®
Description
Specifications
| Color | Red |
| Dimensions | 16-1/2 in L x 8 in W x 17 in H |
| Domestic/Import | Domestic |
| Drive Type | Spring |
| Finish | Powder Coated |
| Hose Capacity | 1/4 in ID x 0.58 in OD x 50 ft L |
| Material | Reinforced Steel |
| Mounting Type | Truck |
| Pressure Rating | 5000 psi |
| Series | DP7000 |
| Swivel Material | Nickel Plated Steel |
| Type | Compact Dual Pedestal |
| Wheel Diameter | 16-1/2 in |
Country of Origin: United States
Standards and Approvals: PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Features
- Reinforced steel - steel guide arm and dual pedestal base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts
- Superior latch spring design - the torsions style latch spring life far exceeds that of conventional coil springs
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The swivel rides on a through shaft offering unparalled support and strength
- Long life drive spring - declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
- High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- 1/2 in female NPTF inlet
- 210 deg F maximum temperature rating
- Without hose
