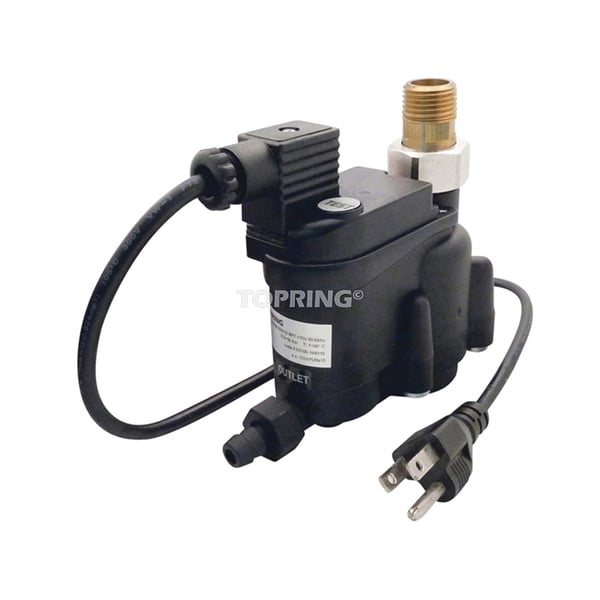

TOPRING 59.250 TOPDRAIN® S59 Automatic Condensation Drain, 1/2 in MNPT x 12 mm Hose Barb Connection, 1 to 60 deg C Temperature, 230 psi Pressure Rating, 115 V AC

TOPRING Automatic Condensation Drain, Series: TOPDRAIN® S59, 1/2 in MNPT x 12 mm Hose Barb, 1 to 60 deg C, 230 psi, 115 V AC, 128 scfm Compressor Performance, 249 scfm Refrigeration Dryer Performance, 1278 scfm, Polyamide, 120 mm H x 60 mm W x 136 mm D

TOPDRAIN® drains automatically drain condensate from aftercoolers, tanks, filters and air lines in an electronically level controlled manner. TOPDRAIN® drains prevent compressed air losses and minimize the energy demand. As a result the drain pays itself off within half a year, in contrast to devices with timed drain valves. In contrast TOPDRAIN® drains sense when liquid is present and automatically discharge it. They only open when condensate is present, meaning no energy loss. Eliminates the problem of condensate. All models are suitable for working with any type of condensate even containing a high percentage of oil. Saves valuable compressed air and reduces compressor demand non-wearing magnetic core level control for optimized and loss-free discharge of condensate. Diaphragm valve with large cross section ensures that contaminants are flushed out and this ensures fault-free operation of the valve. At the same time, the condensate is prevented from forming an emulsion that would need expensive condensate treatment. Easy installation and maintenance. Volt free alarm control - the drain is equipped with a special alarm cycle that starts working in case of trouble. In the alarm state LED indicator blinks and the drain cyclically opens and closes the valve in order to drain the fluid. At the same time the remote control test signal is switched on to request maintenance. Function test button for functionality check, routine inspection, manual discharge and depressurization. Quiet drainage sound - NO (pressure bang).
